Flush Mounted Poe Powered Speakers With Built In Microphone

Ask Lasest Price
Brand Name :	ZYCOO
Model Number :	SQ10-BF
Certification :	EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A
Price :	USD 150-300/unit
Payment Terms :	L/C, D/P, T/T
Supply Ability :	5000pcs/month
Delivery Time :	5-10 business days

Add to Cart

Product Details
Company Profile

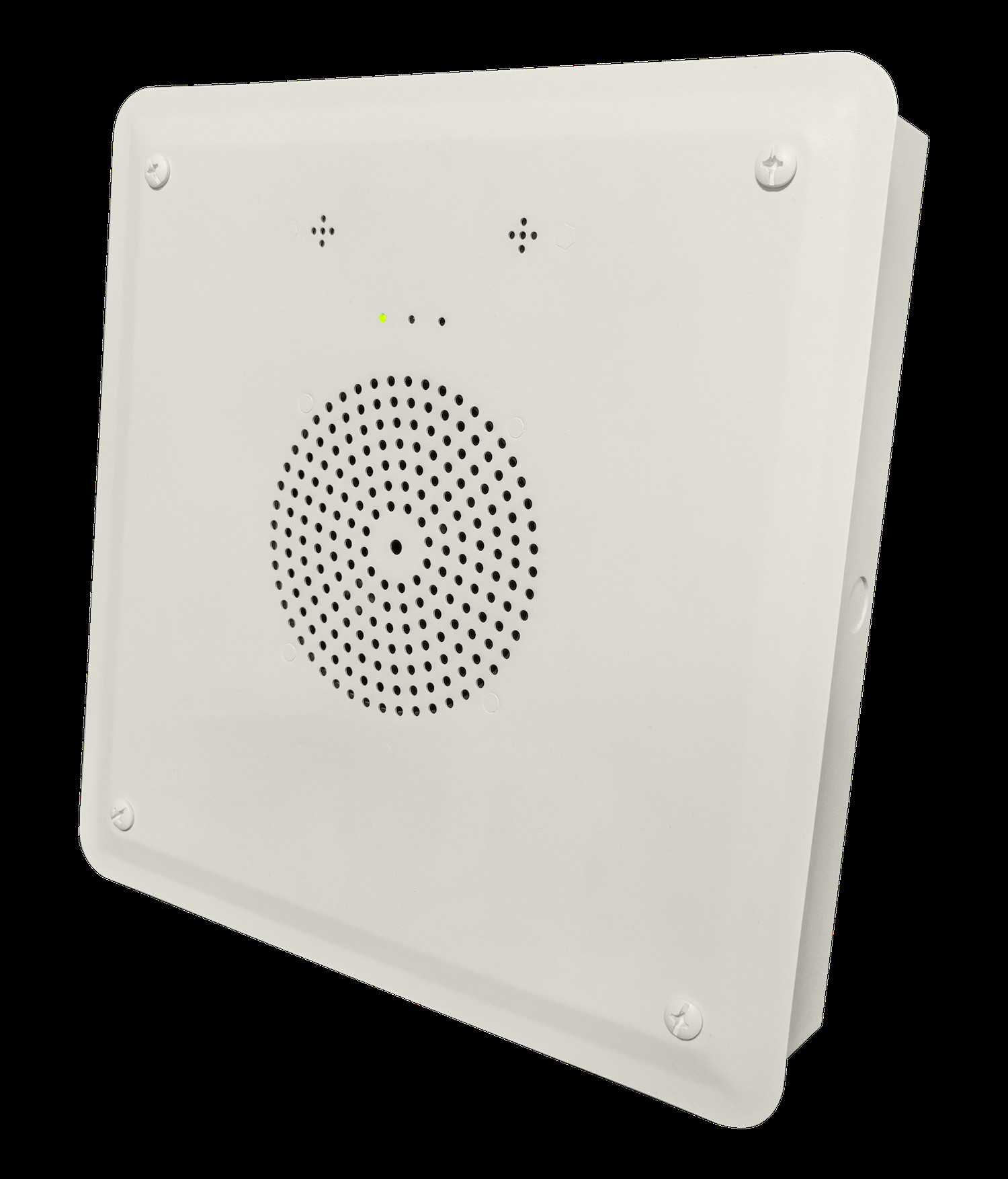

Flush Mounted Poe Powered Speakers With Built In Microphone

Indoor Use Talkback Flush Mount In-Wall IP Square Speaker PoE Supported

ZYCOO Network Square Speaker SQ10-BF Basic is a comprehensive, high-performance, flush-mounted SIP-enabled speaker. With the built-in microphone, the operators can deliver two-way communication at any time, anywhere. Perfect to use in scenarios like classrooms, cafeterias, and offices.

Flush Mounted Poe Powered Speakers With Built In Microphone

Diverse Installation
Four additional knockout holes are implemented along each side of the
enclosure, allow cables to plug into the speaker in any direction.

Specifications

Speaker
Speaker Size	4.5''
Sensitivity	91dB/1m/1W
Max sound pressure level	101dB
Amplifier	Built-in Class D Amplifier
Rated power	8Ω 10W
Frequency range	70Hz – 20KHz
Coverage Pattern	90°H 50°V 30m²
Acoustics	Mono

Audio
Audio codecs	G.722, G.711 A-law, G.711 U-law, Opus
Audio streaming	MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo

Administration
Configuration	Web interface or auto-provisioning server
Provisioning method	MQTT IoT Protocol

Mechanical Properties
Memory	128MB RAM, 256MB Flash
Power input	PoE+ or External 24V DC
Casing	Cold rolled steel finished in textured white epoxy
Color	White
Weight	3.15kg(6.95lb)
Dimension	30030065mm
Mounting method	Wall-mounted
SYS Light Status	On/Off/Flash
PWR Light Status	On/Off/Flash

Environmental
Installation environment	Indoor
Operating temperature	-20°C - 50°C (-4°F - 122°F)
Storage temperature	-40°C - 70°C (-40°F - 158°F)
Humidity	10% - 95% RH Non-condensing
