Indoor Use Talkback IP PA Speaker System Flush Mount PoE+ Supported

Ask Lasest Price
Brand Name :	ZYCOO
Model Number :	SQ10-VF
Certification :	EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A
Price :	USD 200-400/unit
Payment Terms :	L/C, D/P, T/T
Supply Ability :	5000pcs/month
Delivery Time :	5-10 business days

Add to Cart

Product Details
Company Profile

Indoor Use Talkback IP PA Speaker System Flush Mount PoE+ Supported

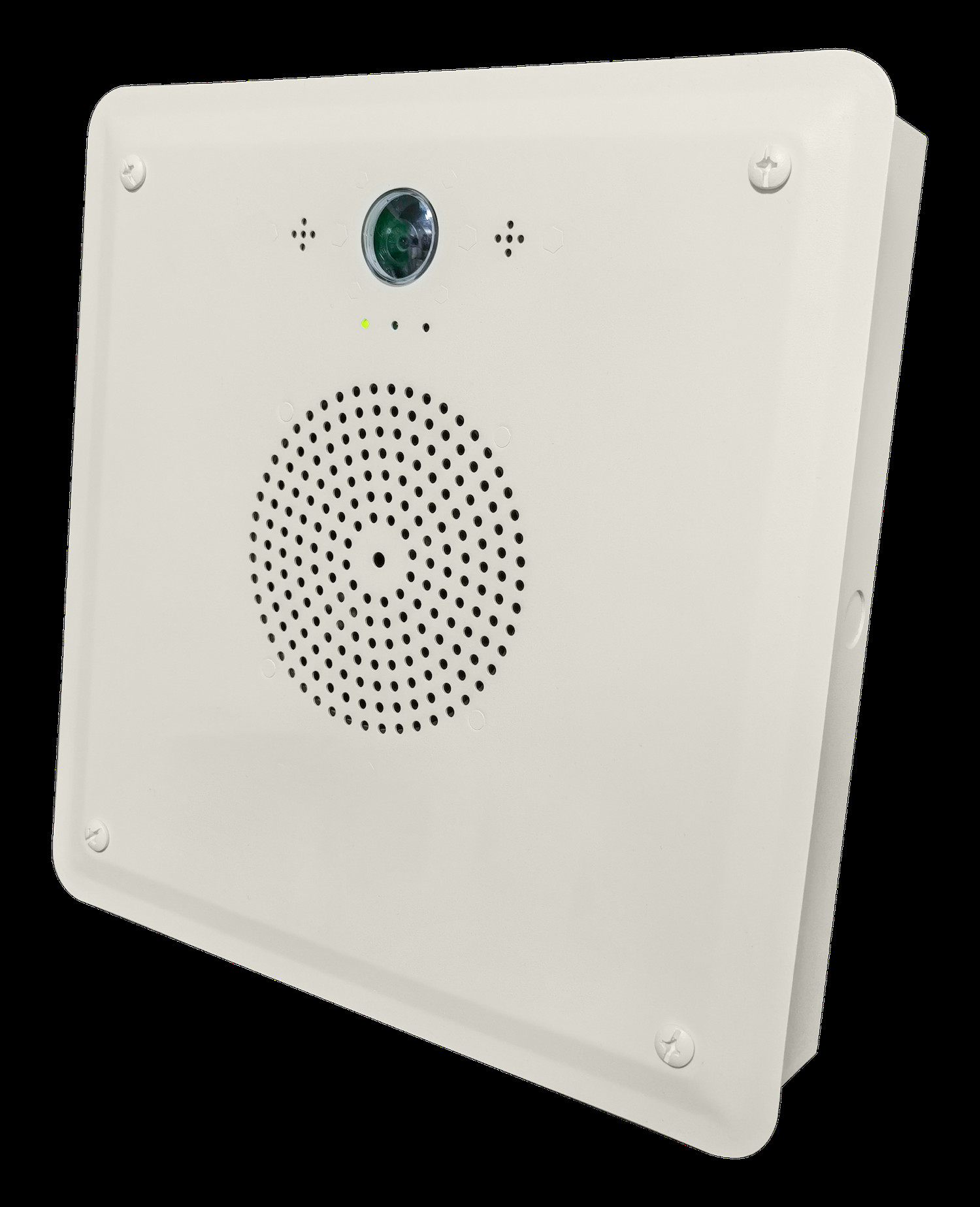

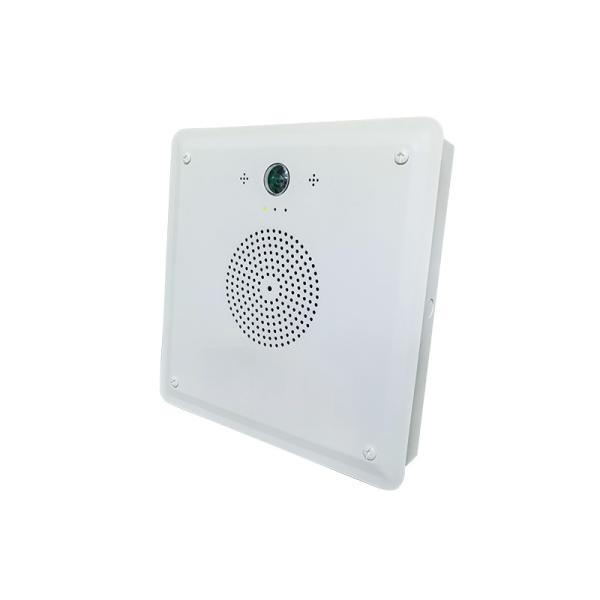

SQ10-VF Indoor Use Talkback Flush Mount In-Wall IP Camera Square Speaker PoE+ Supported

ZYCOO Network Square Speaker SQ10-VF Vista is a comprehensive, high-performance, flush-mounted SIP-enabled speaker. With the built-in HD camera and built-in microphone, the operators can detect the indoor environment and deliver two-way communication at any time, anywhere. Perfect to use in scenarios like terminal stations, cafeterias, and offices.

Indoor Use Talkback IP PA Speaker System Flush Mount PoE+ Supported

PoE+

SQ10 is PoE supported, making it easy to connect into local area networks from your PoE switch with a CAT 5/6 cable. No extra power cables are needed.

Specifications

Speaker
Speaker Size	4.5''
Sensitivity	91dB/1m/1W
Max sound pressure level	101dB
Amplifier	Built-in Class D Amplifier
Rated power	8Ω 10W
Frequency range	70Hz – 20KHz
Coverage Pattern	90°H 50°V 30m²
Acoustics	Mono

Audio
Audio codecs	G.722, G.711 A-law, G.711 U-law, Opus
Audio streaming	MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo

Administration
Configuration	Web interface or auto-provisioning server
Provisioning method	MQTT IoT Protocol

Mechanical Properties
Memory	128MB RAM, 256MB Flash
Power input	PoE+ or External 24V DC
Casing	Cold rolled steel finished in textured white epoxy
Color	White
Weight	3.15kg(6.95lb)
Dimension	30030065mm
Mounting method	Wall-mounted
SYS Light Status	On/Off/Flash
PWR Light Status	On/Off/Flash

Environmental
Installation environment	Indoor
Operating temperature	-20°C - 50°C (-4°F - 122°F)
Storage temperature	-40°C - 70°C (-40°F - 158°F)
Humidity	10% - 95% RH Non-condensing

Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.

Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.

Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.

Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.

Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com

WHY CHOOSE US

ZYCOO, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that mainly serve the SME market.

With the deployment of distribution channels and branch offices in Czech Republic and UAE, ZYCOO products and solutions have been deployed in more than 100 countries and trusted by over 100,000 satisfied customers. Customers can enjoy direct sales, tech-support, training, and after-sale service while using ZYCOO products and solutions.

Besides branded product, ZYCOO also offers various types of embedded hardware boards for ODM and OEM, as well as software modification or white-label. ZYCOO always keeps pace with the innovative VOIP technology and provides cost-effective products and services to customers.
